Q7 DC Brushless Barrier Gate

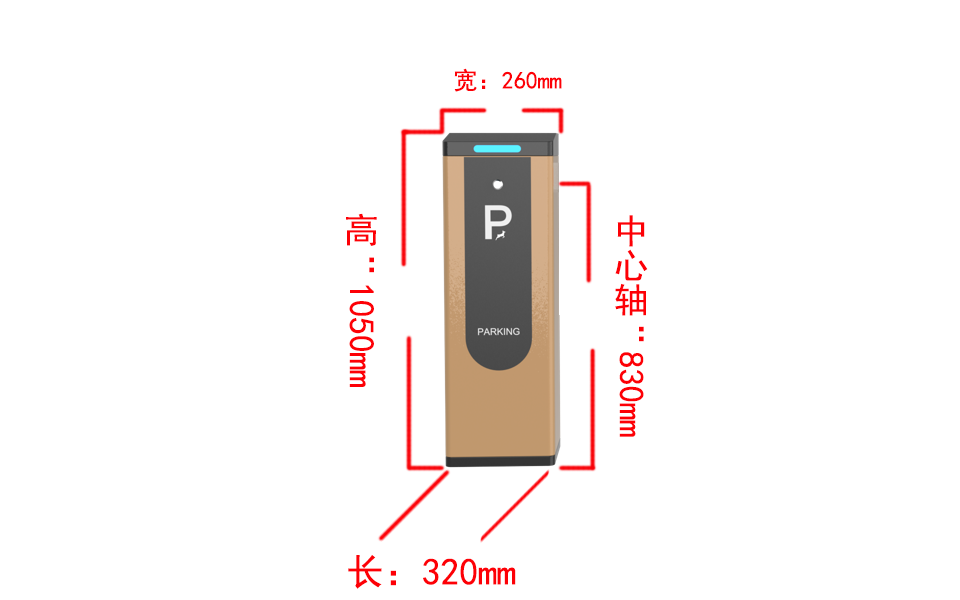

Appearance Parameters

Expansion Screws	4 pieces (M12 x 120)
Working Voltage	DV24/10A
Motor	ZTE 100JC (standard)
Motor Power	Standard 120W, 150W optional
Control Board	Integrated Board (blue) (standard)
Control Board 2	With TCP, 485 (green) (optional)

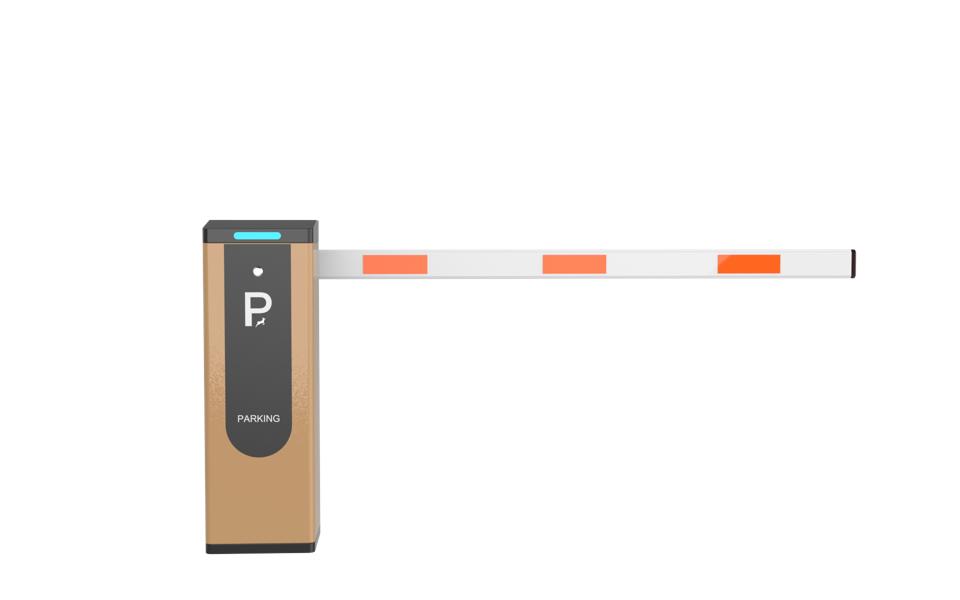

Rod Type 1	Octagonal Straight Rod 100 x 45 (standard)
Rod Type 2	Golden Oval Rod / With Red and Green Light Strip / Anti-smashing Rubber Strip (optional)
Spring	One piece 5.0 x 350 (standard)
Door Opening Method	Triangular key, pull-out style
Other Rod Types	Fence Rod, Folding Arm Rod, Soaking Rod (according to motor)
Working Humidity	Less than or equal to 90%
Technical Interface	Open interface protocol, free interface (QR code gate opening requires platform)
Control System	Supports 485, TCP (QR code gate opening)

Working Voltage	DV24/10A
Service Life	5 million cycles
Motor Speed	1500r/min
Accessories 1	Certificate of conformity, after-sales warranty card
Accessories 2	Four screws for fixing the octagonal chuck
Core Speed	Standard 3 seconds, optional 1.5s or other
Working Temperature	-25C to +60C
Communication Mode	Switch value (standard) / 485, TCP (optional)
Color	Gold / Black (customizable)

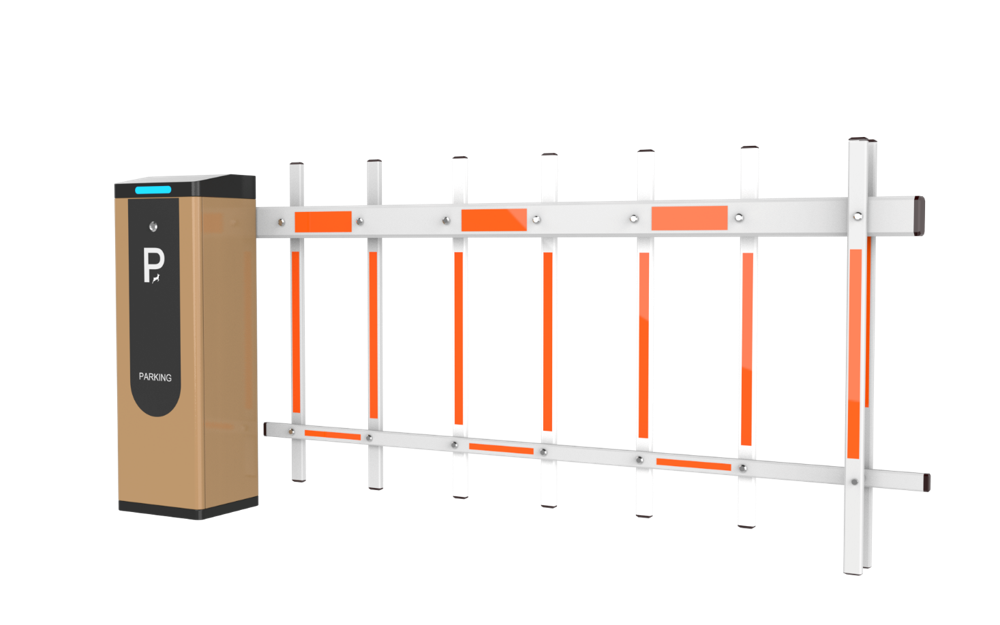

Supported Pole Type	Fence pole, straight pole, 90-degree folding arm pole, 180-degree folding pole
Silkscreen LOGO	Standard as shown, customizable starting from 100 units
Power Protection	Air switch with leakage protection
Control System	Dedicated integrated control motherboard
External Power Supply	220V 50/60HZ
