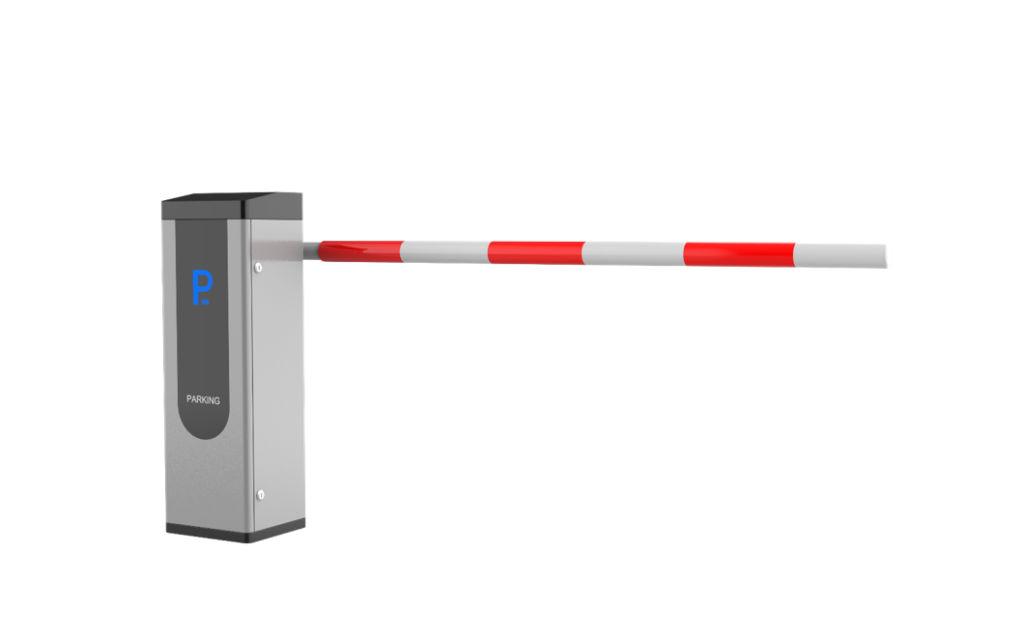

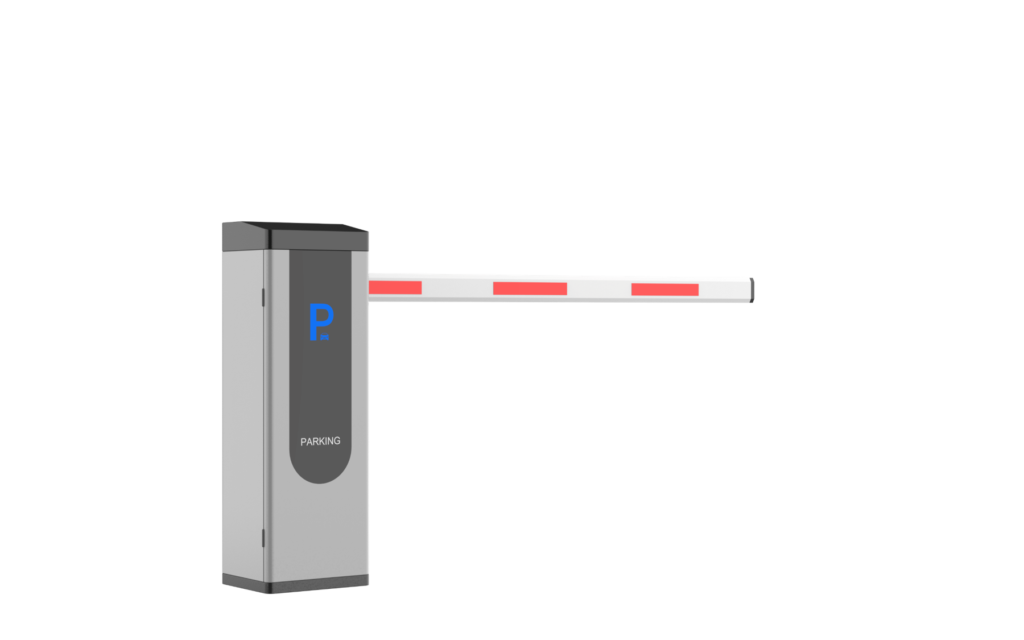

Q7L Highway Barrier Gate
Appearance Parameters
| Case Size | Length 330 x Width 260 x Height 1050mm |
| Input Voltage | 220V |
| Steel Plate Thickness | 1.8 mm (approx 2.0 after spraying) |
| Appearance Process | Powder baking paint |
| Paint Brand | Huacai |
| Motor Shaft Height | 830mm |
| Fixing Method | Iron pressure |
| Packaging Method | KMK carton + pearl cotton |
Recognition Parameters
| Expansion Screws | 4 pieces (M12 x 120) |
| Working Voltage | DV24/10A |
| Motor | ZTE 100JC (standard) |
| Motor Power | Standard 120W, 150W optional |
| Control Board | Integrated board (standard) |
| Control Board 2 | With TCP, 485 (green) (optional) |
| Rod Type 1 | 4-meter foam rod |
| Rod Type 2 | Golden oval rod / with red and green light strips / anti-collision rubber strip (optional) |
| Spring | One 5.0 x 50 (standard) |
| Door Opening Method | Triangular key, pull-out style |

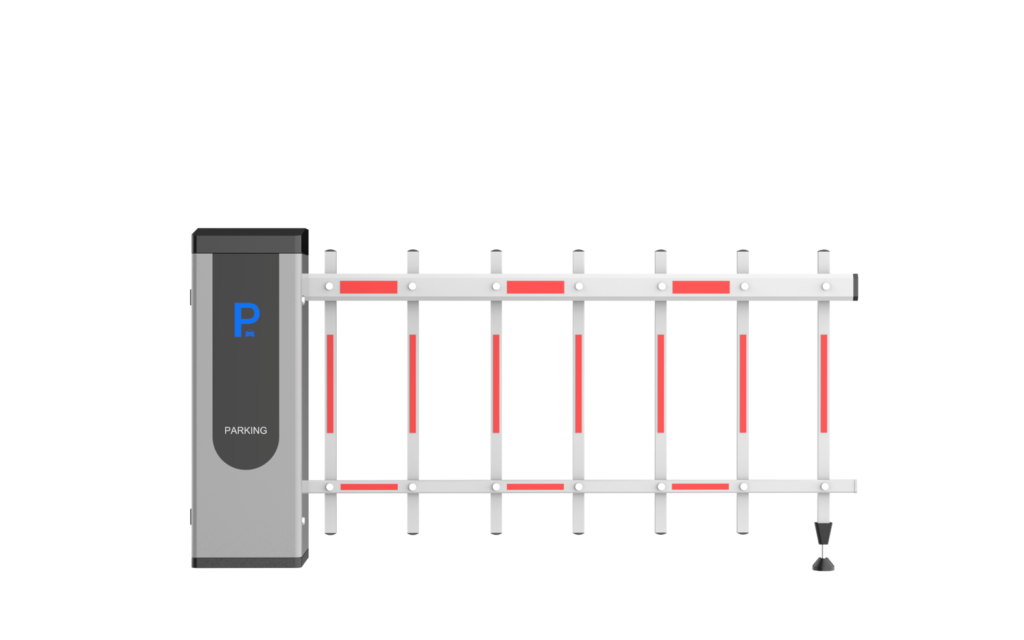

| Other Rod Types | Fence rod, folding arm rod, bubble rod (according to) |
| Working Humidity | Less than or equal to 90% |
Spoiler Parameters
| Working Voltage | DV24/10A |
| Service Life | 5 million cycles |
| Motor Speed | 1500r/min |
| Accessories 1 | Certificate of conformity, after-sales warranty card |
| Accessories 2 | Four screws for fixing the octagonal chuck |
| Core Speed | Standard 3 seconds, optional 1.5s or other |
| Working Temperature | -25C to +60C |
| Communication Mode | Switch value (standard) / 485, TCP (optional) |
| Color | Gold / Black (customizable) |
| Supported Pole Type | Fence pole, straight pole, 90-degree folding arm pole, 180-degree folding pole |
| Silkscreen LOGO | Standard as shown, customizable starting from an order of 100 units |
| Power Protection | Air switch with leakage protection |
| Control System | Dedicated integrated control motherboard |
| External Power Supply | 220V 50/60HZ |
Installation & Technical Support
- Boom Barrier Installation Guide — Step-by-step setup instructions
- Troubleshooting Guide — Common problems and fixes
- How to Choose a Boom Barrier — Product selection guide
- Contact Technical Support — Get expert help for your project
Factory Sample Program — Evaluate Before You Commit
Order one evaluation unit at factory-direct pricing. Test build quality, verify specifications, and inspect our manufacturing standards before placing a bulk order.
- One evaluation unit per new customer
- Inspect build quality and test performance firsthand
- OEM & ODM customization available for bulk orders
- Full technical support and 2-year warranty included
Get Factory-Direct Pricing & a $105 Test Sample
Factory-direct pricing with OEM/ODM options. Evaluate a $105 sample before committing to a bulk order — valid for qualified B2B buyers.
Need a quote for this model? Submit an RFQ → | Test with a $105 sample →
