Barrier Gate Control Boards | Huiyang & Zhimeitong
Integrated digital control boards for 24V DC brushless boom barrier systems. Both models feature AC220V input, dedicated motor terminals, vehicle detector inputs, and configurable external-device interfaces.
The control board is the central processing unit of any automatic barrier gate system. It interprets signals from vehicle detectors, remote controls, access controllers, and safety sensors, then sends precise commands to the DC brushless motor. A well-matched control board ensures smooth acceleration and deceleration, accurate position sensing, and reliable fail-safe behavior during power interruptions. Both Huiyang and Zhimeitong boards are field-tested with BXB barrier gate motors and support RS485 communication for networked multi-lane installations.
Huiyang Integrated Control Board
24V digital barrier gate controller with integrated AC220V input, motor terminals, traffic-light output, backup power connection and configurable external-device interfaces. Compatible with the full range of BXB 24V brushless motors including Model 90, 21B and 18B.
- For 24V DC brushless barrier motors
- RS485 communication configuration
- Open, close and stop control inputs
- Vehicle detector, infrared and peripheral interfaces
- Adjustable opening and closing parameters

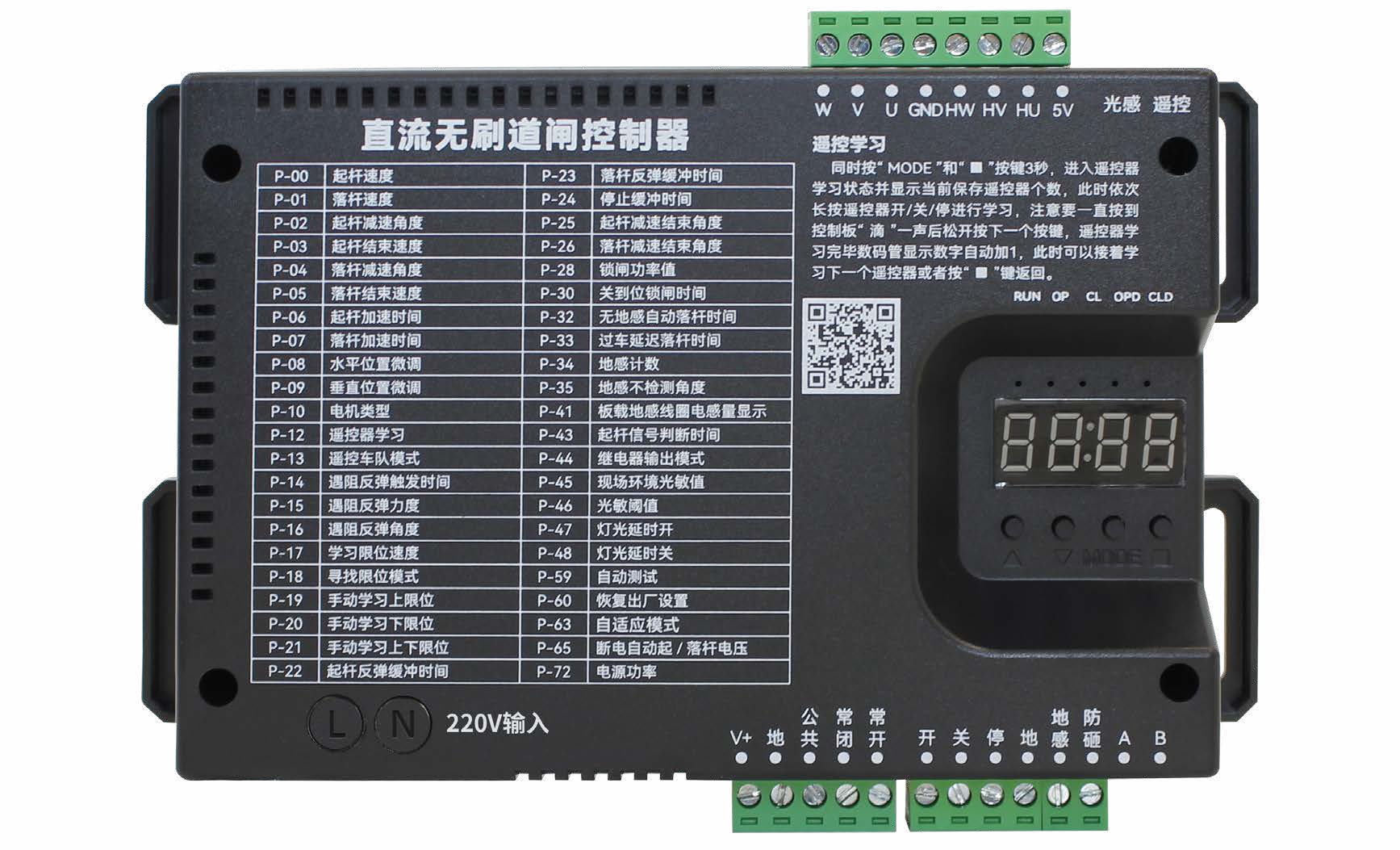

Zhimeitong Integrated Control Board
DC brushless boom barrier controller with AC220V input, digital display, parameter keys and dedicated motor, sensor, remote-control and barrier status terminals. Suitable for both new installations and retrofit upgrades of existing Q5, Q7, and Q7L barrier gate models.
- For 24V DC brushless barrier motors
- Digital parameter display and adjustment
- Remote-control learning functions
- Ground-loop and safety-device inputs
- Open, close, stop and status connections
Frequently Asked Questions
Which control board should I choose?
The Huiyang board offers comprehensive RS485 communication and peripheral interfaces, ideal for multi-lane networked installations. The Zhimeitong board adds a built-in digital display and parameter keys for on-site adjustment without a computer, plus remote-control learning functions. Both are compatible with BXB 24V brushless motors.
Can I replace just the control board without changing the motor?
Yes, both boards are designed as drop-in replacements for 24V DC brushless barrier gate systems. Verify that your existing motor, vehicle detector, and access control wiring match the terminal layout shown in the product manuals. Download the PDF manuals above for detailed wiring diagrams.
Recommended Accessories
Complete your barrier gate control system with these compatible components:
- 24V Brushless Motors — Model 90 (100W), Model 21B (100-150W), Model 18B (100-150W) with adjustable 0.3-6s operation
- Barrier Gate Cabinet — Q5 — Medium-duty cabinet with DC brushless drive
- Barrier Gate Cabinet — Q7 — Heavy-duty industrial cabinet for high-traffic sites
- Facial Recognition Terminal — 7-inch IP65 access control terminal with dual cameras and NFC
