Q5 Automatic Boom Barrier Gate
Q5 for Medium-Duty Parking Projects
DC brushless boom barrier with configurable boom, speed, control-board, and integration options. Request factory bulk pricing for your required standard-product configuration.
Appearance Parameters

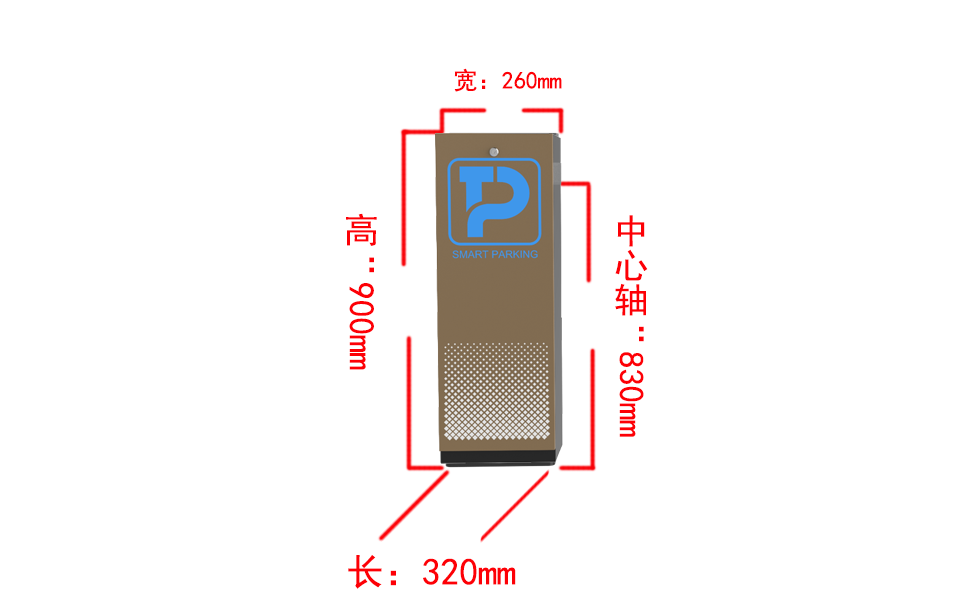

| Chassis Size | Length 320 x Width 260 x Height 900mm |
| Input/Output Voltage | 220V |
| Steel Plate Thickness | 1.5mm (non-standard) |
| Surface Finish | Powder coating |
| Paint Brand | Huacai |
| Motor Shaft Height | 830mm |
| Fixing Method | Pressed iron |
| Packaging Method | KMK carton + pearl cotton |
Identification Parameters
| Expansion Screws | 4 pieces (M12 x 120) |
| Working Voltage | DC 24V / 10A |
| Core 1 | ZTE 100DZ (standard) / ZTE 100JC (optional) |
| Core 2 | Chengbang 21B (optional) |
| Control Mainboard | Integrated mainboard (blue) (standard) |
| Control Mainboard 2 | With TCP, 485 (green) (optional) |

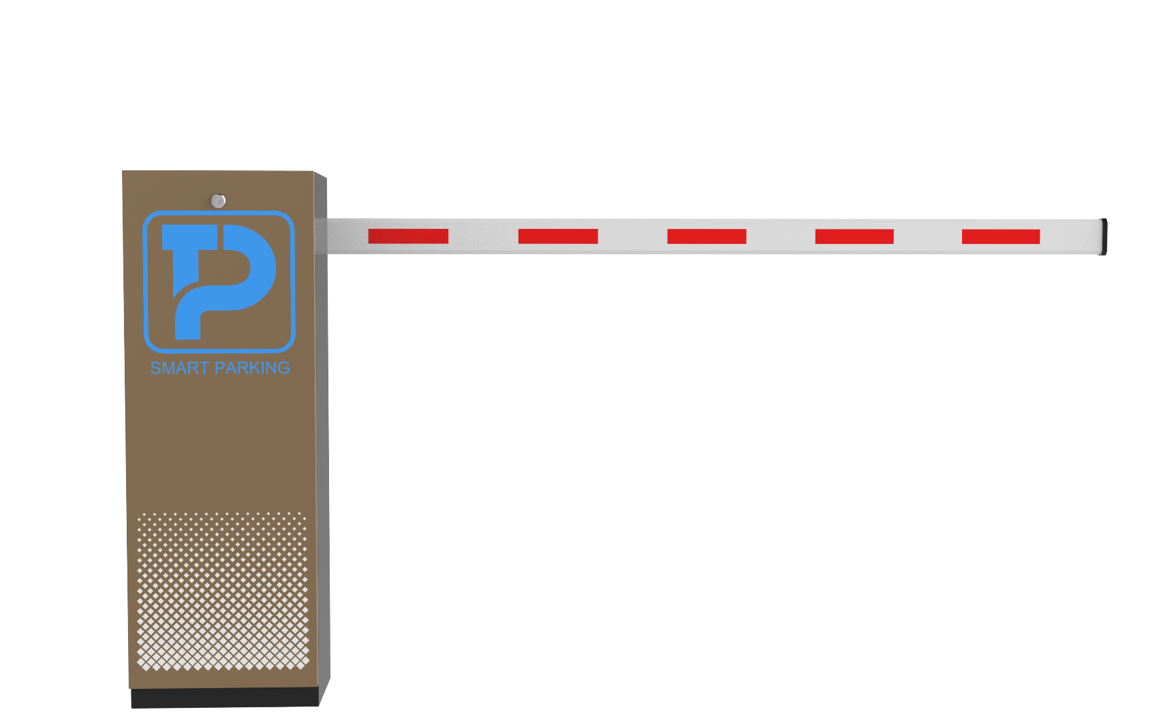

| Rod Type 1 | Octagonal straight rod 100 x 45 (standard) |
| Rod Type 2 | Golden oval rod / with red and green light strip / anti-smash rubber strip (optional) |
| Spring | One piece 5.0 x 350 (standard) |
| Door Opening Method | Triangle key, pull-out type |

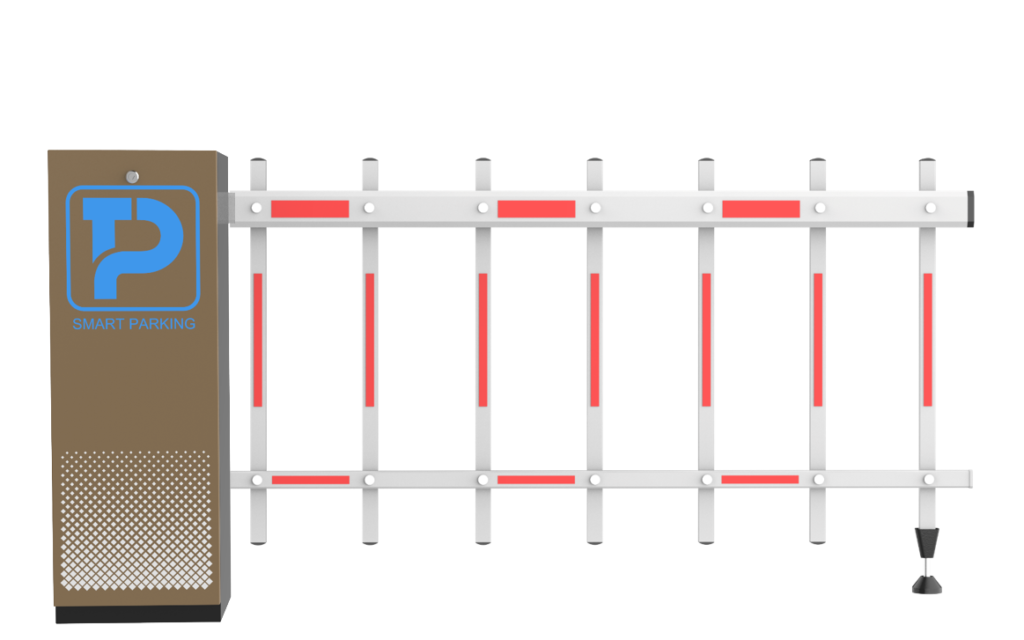

| Other Rod Types | Fence rod, folding arm rod, foam rod (depending on core) |
| Working Humidity | Less than or equal to 90% |
| Technical Integration | Open interface protocol, any integration (QR code gate opening requires a platform) |
| Control System | Supports 485, TCP (QR code gate opening) |
Swing Arm Parameters
| Working Voltage | DC 24V / 10A |
| Operating Life | 5 million cycles |
| Motor Speed | 1500 r/min |
| Accessory 1 | Certificate, after-sales warranty card |
| Accessory 2 | Four screws for octagonal chuck fixation |
| Core Speed | Standard 3 seconds, optional 1.5s or others |
| Working Temperature | -25C to +60C |
| Communication Method | Switch signal (standard) / 485, TCP (optional) |
| Color | Gold / Black (customizable) |
| Supported Rod Types | Fence rod, straight rod, 90-degree folding arm rod, 180-degree folding rod |
| Silkscreen Logo | Standard as shown, customizable starting from 100 units |
| Power Protection | Air switch with leakage protection |
| Control System | Dedicated integrated control mainboard |
| External Power | 220V 50/60HZ |
Installation & Technical Support
- Boom Barrier Installation Guide — Step-by-step setup instructions
- Troubleshooting Guide — Common problems and fixes
- How to Choose a Boom Barrier — Product selection guide
- Contact Technical Support — Get expert help for your project
BXB Barrier — Factory-Direct Manufacturing Since 2016
BXB Barrier operates a 3,000 m² manufacturing facility in Dongguan, China, serving distribution partners across 20+ countries. Every unit undergoes 48-hour burn-in quality testing before shipment.
- Manufacturing: 3,000 m² Dongguan factory | In-house production, no outsourcing
- Quality Control: Component-level QC | 48-hour burn-in cycle per unit | Certification requirements can be handled according to the specific product configuration and project requirements.
- OEM & ODM: Custom branding, specifications, firmware, and packaging — learn more
- Global Export: 20+ countries across Middle East, SE Asia, Africa, Europe, Americas
- Warranty: 1-year manufacturer warranty with direct engineering support
Verify our quality — order a factory sample → | Request OEM quote → | WhatsApp: +86 18033452813
Factory Sample Program — Evaluate Before You Commit
Order one evaluation unit at factory-direct pricing. Test build quality, verify specifications, and inspect our manufacturing standards before placing a bulk order.
- One evaluation unit per new customer
- Inspect build quality and test performance firsthand
- OEM & ODM customization available for bulk orders
- Full technical support and 1-year warranty included
Q5 Evaluation Sample — USD 105
1.2mm cabinet configuration · Freight not included · For qualified B2B customers.
Need a quote for this model? Submit an RFQ → | Request Q5 Sample
