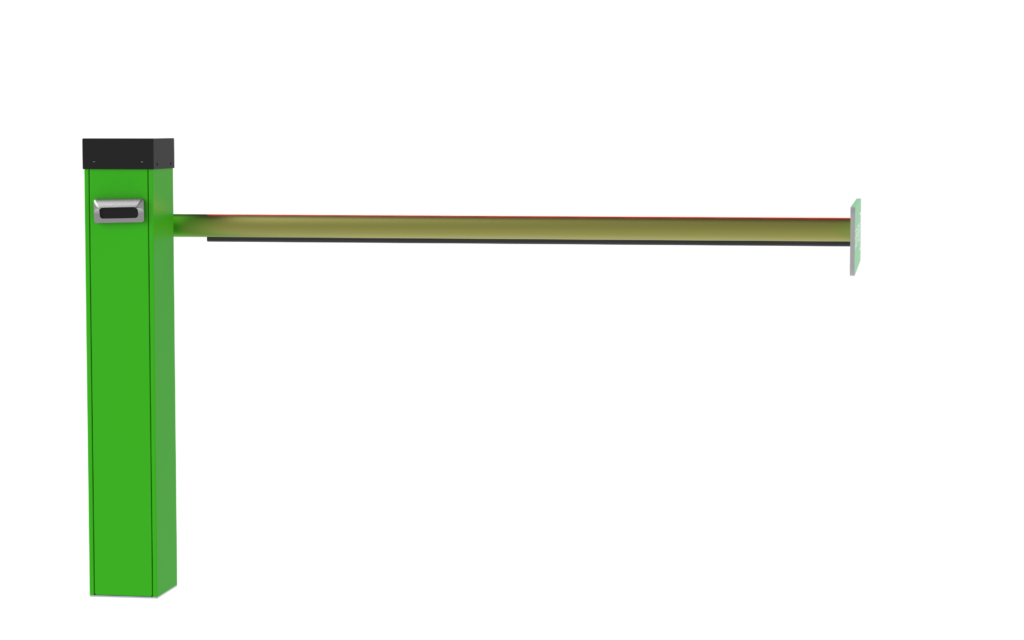

BX-260 Small Automatic Boom Barrier Gate Appearance Parameters Chassis Dimensions Length 150 x Width 150 x Height 980mm Input/Output Voltage 220V Steel Plate Thickness 1.5mm Surface Finish Powder Coating Paint Brand Huacai Motor Shaft Height 830mm Camera Height Compatible with parking space camera above 1.8m Packaging Method KMK cardboard + pearl cotton
Recognition Parameters Output Voltage 220V Straight Rod 2.5 meters (standard) Advertising Board Size 700 x 150 (standard white light) 90-Degree Folded Rod Main rod 1.5m, secondary rod 1m, standard with red and green light strips Fixing Method Expansion screw mounted template Rod Type Standard straight rod (optional 90-degree folded rod) Operating Temperature -25C to +70C Barrier Falling Method Radar / Remote Control Power Voltage DC 7-24V, ripple less than 200mV Recognition Range Optimal shooting range 3.5 meters Operating Humidity Less than or equal to 90% Technical Integration Open interface protocol, can be integrated freely (QR code barrier opening requires platform support) Control System Supports 485, ICP (QR code barrier opening)
Electrical & Motor Specifications Working Voltage DV24/10A Service Life 5 million times Motor Speed 1500r/min Surface Treatment Powder baked paint Steel Plate Thickness (after coating) Full thickness 1.5mm, approx 1.6mm after spraying Core Model T8, 90W Working Temperature -25C to +60C Communication Mode 485 communication, switch value, TCP Color Green full color, yellow (customizable) Supported Pole Type Straight pole, 90-degree folding arm pole 2.5m (standard red and lights) Pole Type Specifications Golden oval pole 50mm x 35mm Lift/Lower Speed 1.5-3 seconds adjustable Control System Dedicated integrated control mainboard for parking lot gate External Power Supply 220V 50/60HZ
