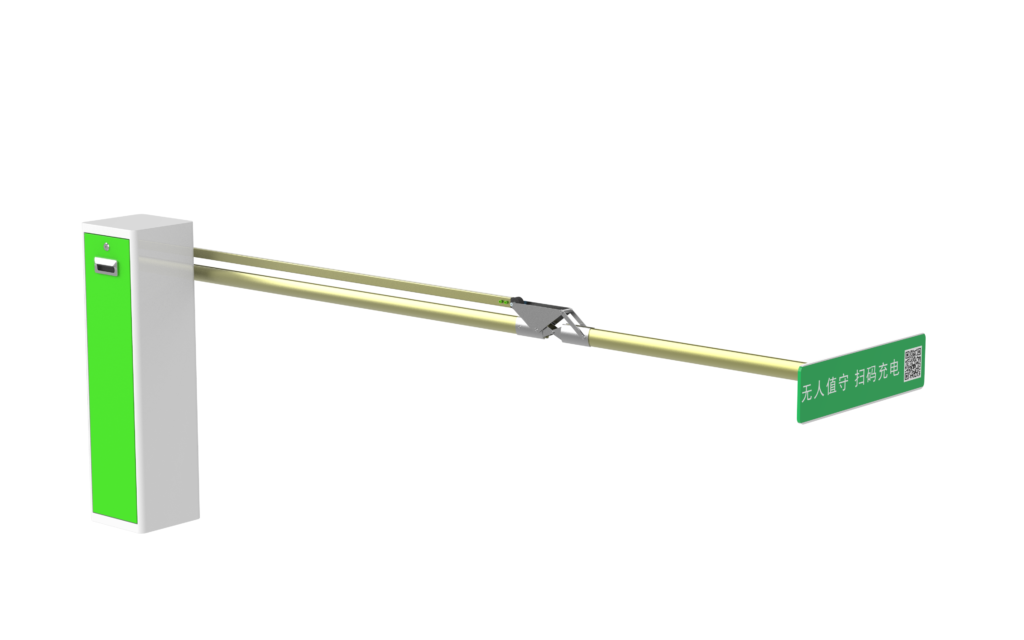

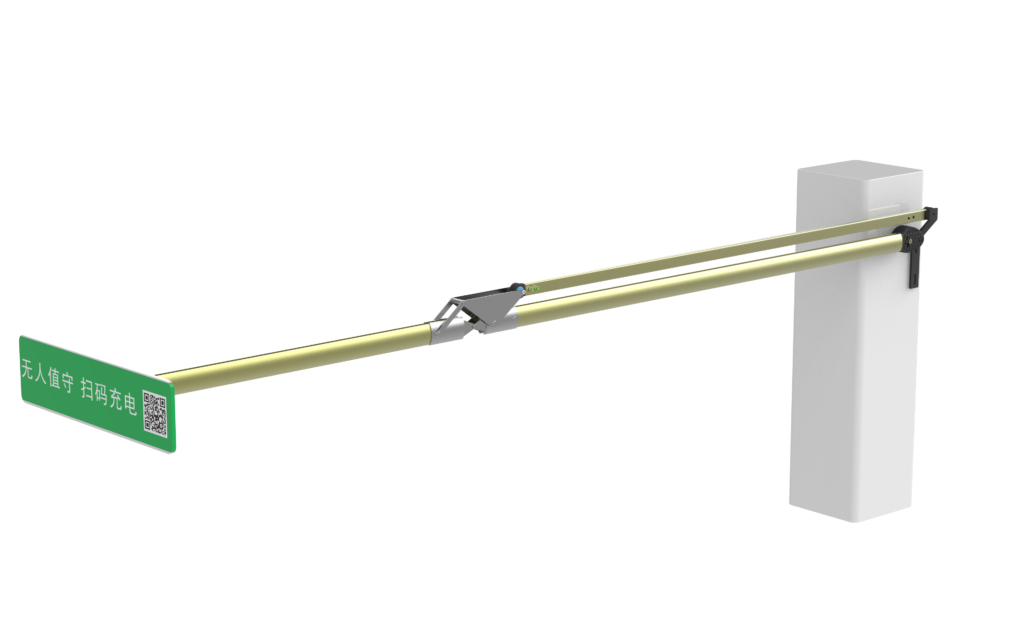

180-Degree Rod DC Brushless Barrier Gate Appearance Parameters Dimension of Cabinet Length 260 x Width 260 x Height 980mm Input Voltage 220V Steel Plate Thickness 1.5 mm Appearance Process Powder baked paint Paint Brand Huacai Motor Shaft Height 830mm Camera Height 1.8 meters with parking space Packaging Method KMK carton + pearl cotton
Recognition Parameters Output Voltage 220V 180-Degree Folding Pole Main pole 2m, sub-pole 1m (traffic light bars) Advertising Board Size 700 x 150 (standard white light) 90-Degree Folding Pole Main pole 2m, sub-pole 1m, standard traffic light bars Fixing Method Expansion bolt installation template Pole Type Standard without pole (optional 90-degree, 180-degree folding pole) Working Temperature -25C to +70C Power Supply Voltage DC 7-24V, ripple less than 200mV Working Humidity Less than or equal to 90% Technical Interface Open interface protocol, arbitrary interface (QR code gate opening requires platform support) Control System Supports 485, ICP (QR code gate opening)
Spoiler Parameters Working Voltage DV24/10A Service Life 5 million times Motor Speed 1500r/min Surface Treatment Powder baked paint Steel Plate Thickness (after coating) Full thickness 1.5mm, approx 1.6mm after spraying Core Model 10JC, 90W Working Temperature -25C to +60C Communication Mode 485 communication, switch value, TCP Color White, green, gold (customizable) Supported Rod Types Straight rod, 90-degree elbow rod, 180-degree folding rod Rod Type Specifications Golden oval rod 50mm x 35mm Lift Rod Speed 1.5-3 seconds adjustable Control System Dedicated integrated motherboard for parking lot gate External Power Supply 220V 50/60HZ
larr; Back to All Products
Installation & Technical Support
Factory Sample Program — Evaluate Before You Commit Order one evaluation unit at factory-direct pricing. Test build quality, verify specifications, and inspect our manufacturing standards before placing a bulk order.
One evaluation unit per new customer Inspect build quality and test performance firsthand OEM & ODM customization available for bulk orders Full technical support and 2-year warranty included Get Factory-Direct Pricing & a $105 Test Sample Factory-direct pricing with OEM/ODM options. Evaluate a $105 sample before committing to a bulk order — valid for qualified B2B buyers.
Complete Your Barrier Gate System
